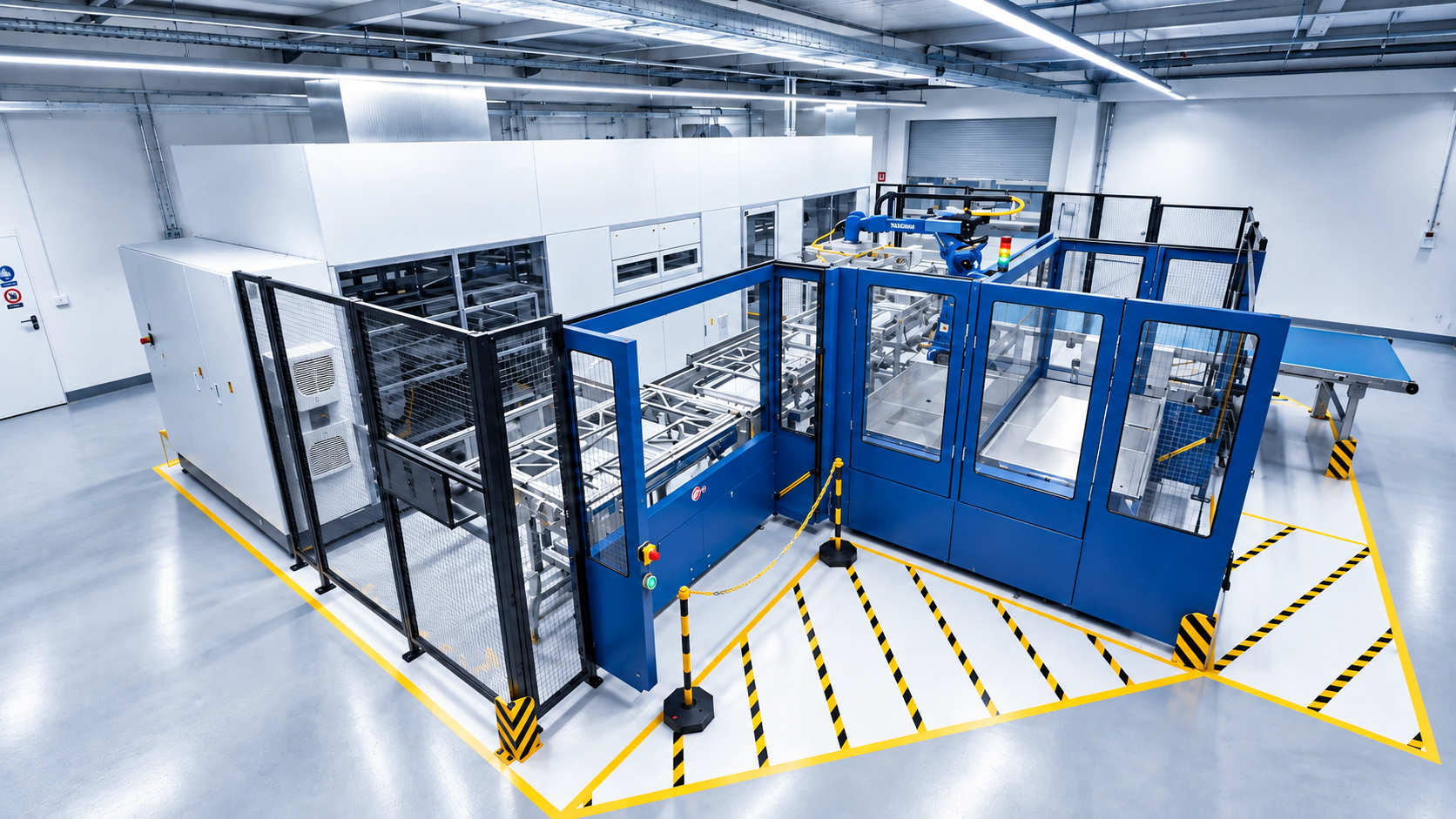

PANTHER
Automated thermoforming for large decorative components.
- Material feed
- Individual sheets
- Forming area
- 1380 × 880 mm
- Forming height
- 300 mm
QIN-FORM · MANUFACTURING
Our equipment
Our equipment for thermoforming and finishing.
Thermoforming
From decorative films to rigid plastic sheets.

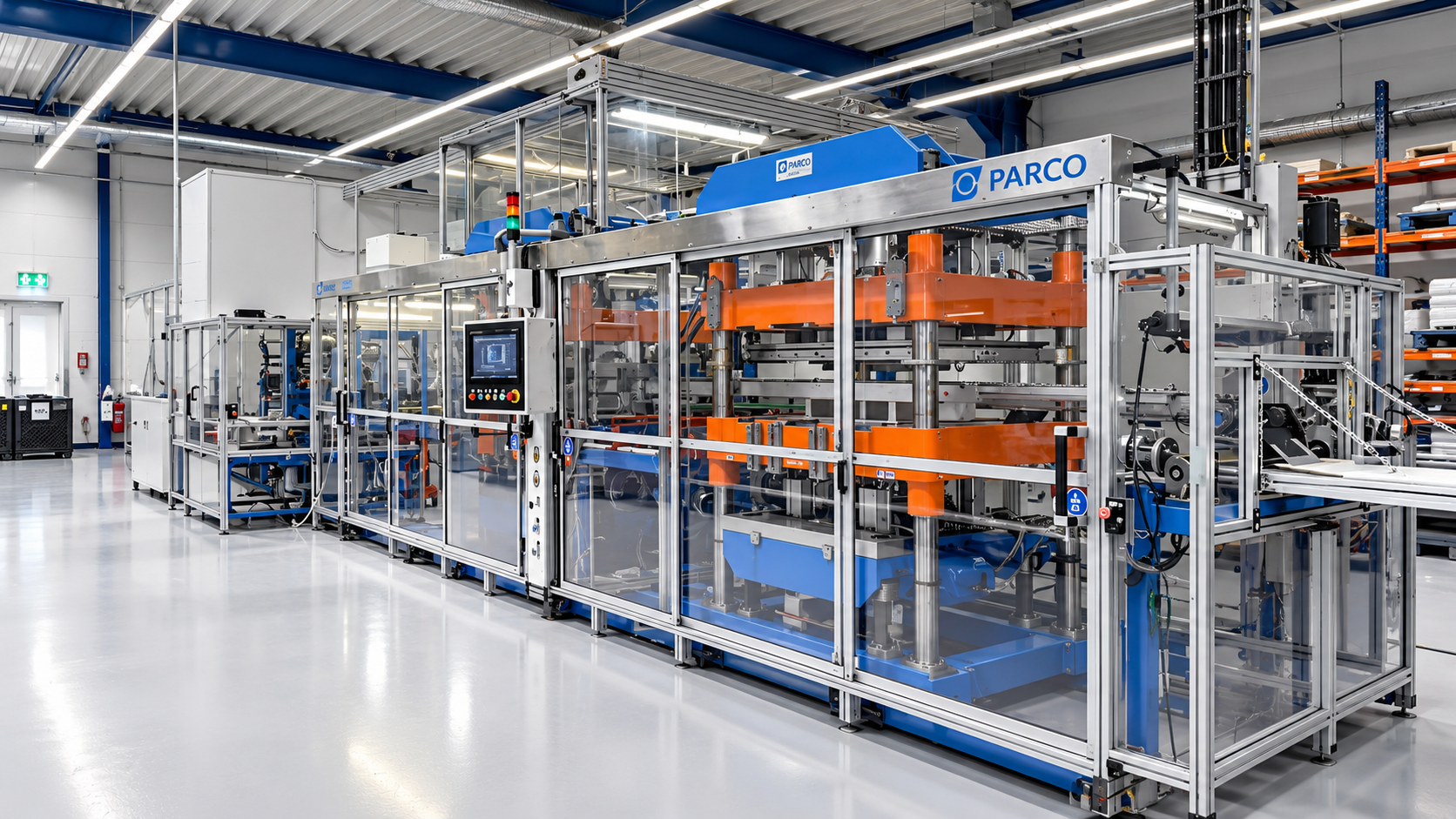

PARCO
Flexible material feed for different production requirements.
- Material feed
- Rolls and individual sheets
- Forming area
- 1280 × 745 mm
- Forming height
- 150 mm

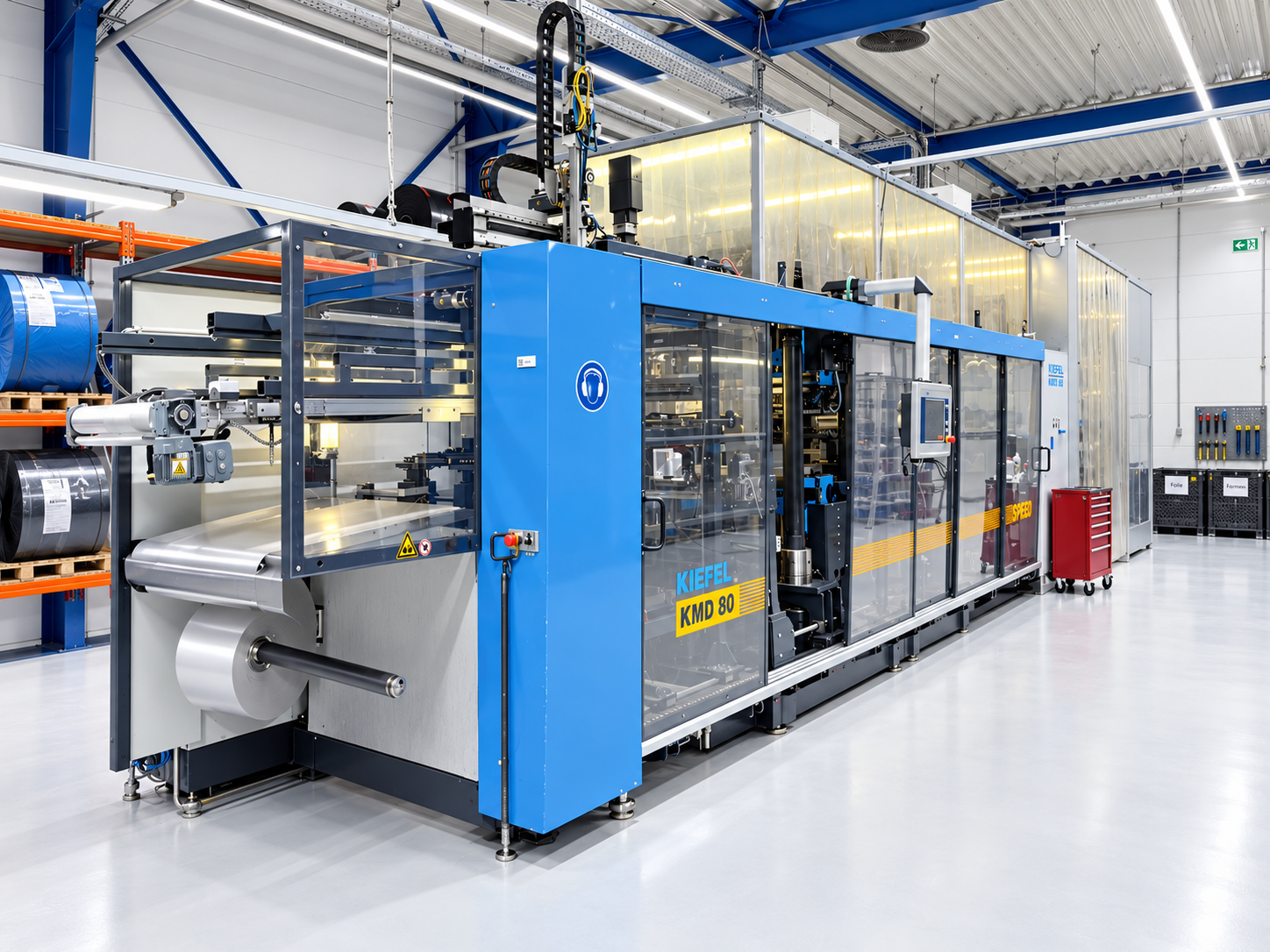

KIEFEL
Thermoforming of roll material.
- Material feed
- Rolls
- Forming area
- 580 × 780 mm
- Forming height
- 130 mm

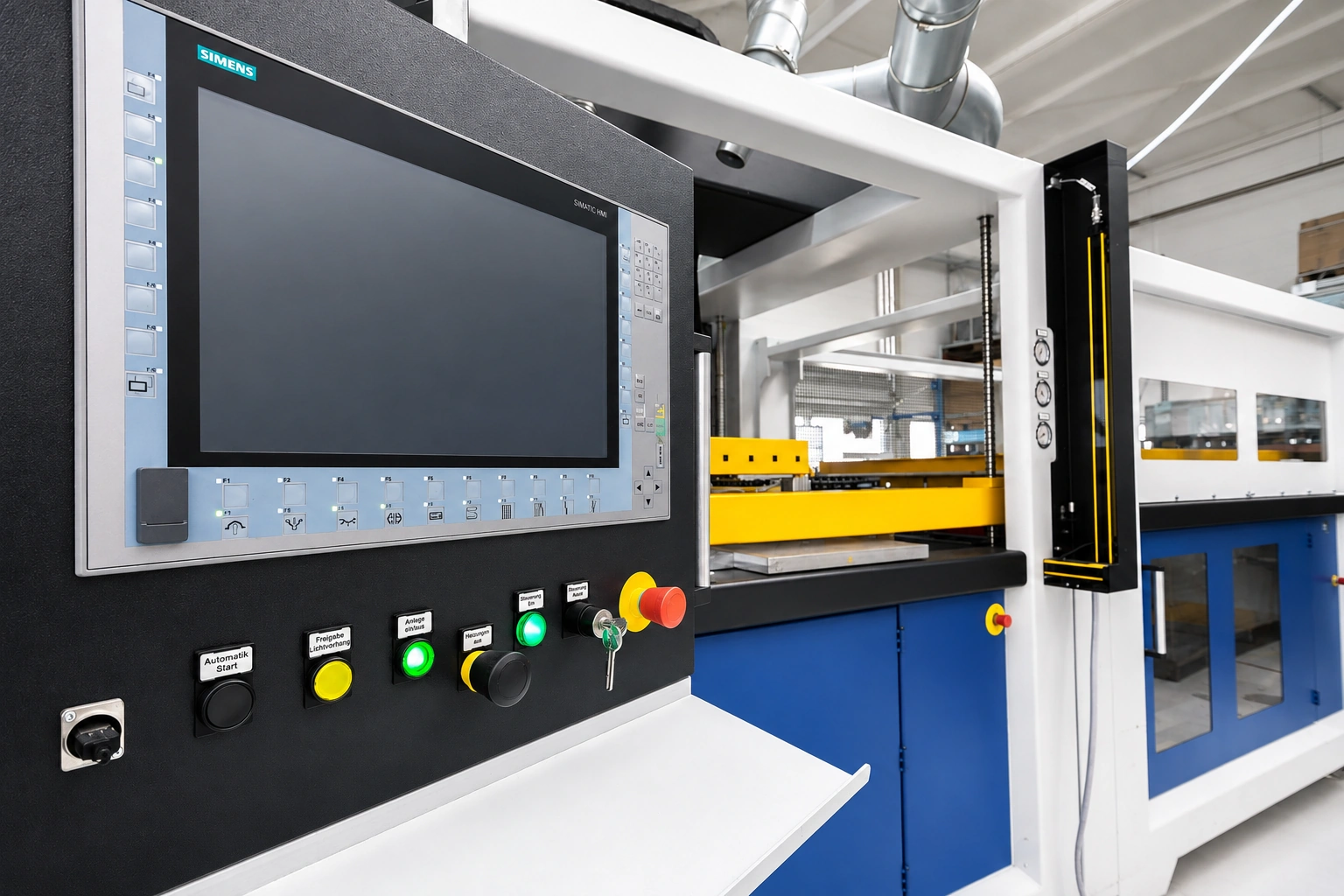

GEISS
Rigid housings and covers made from plastic sheets.
- Material feed
- Plastic sheets
- Forming area
- 1169 × 1415 mm
- Forming height
- 600 mm
Milling & die cutting
Contours, cut-outs and clean edges after forming.

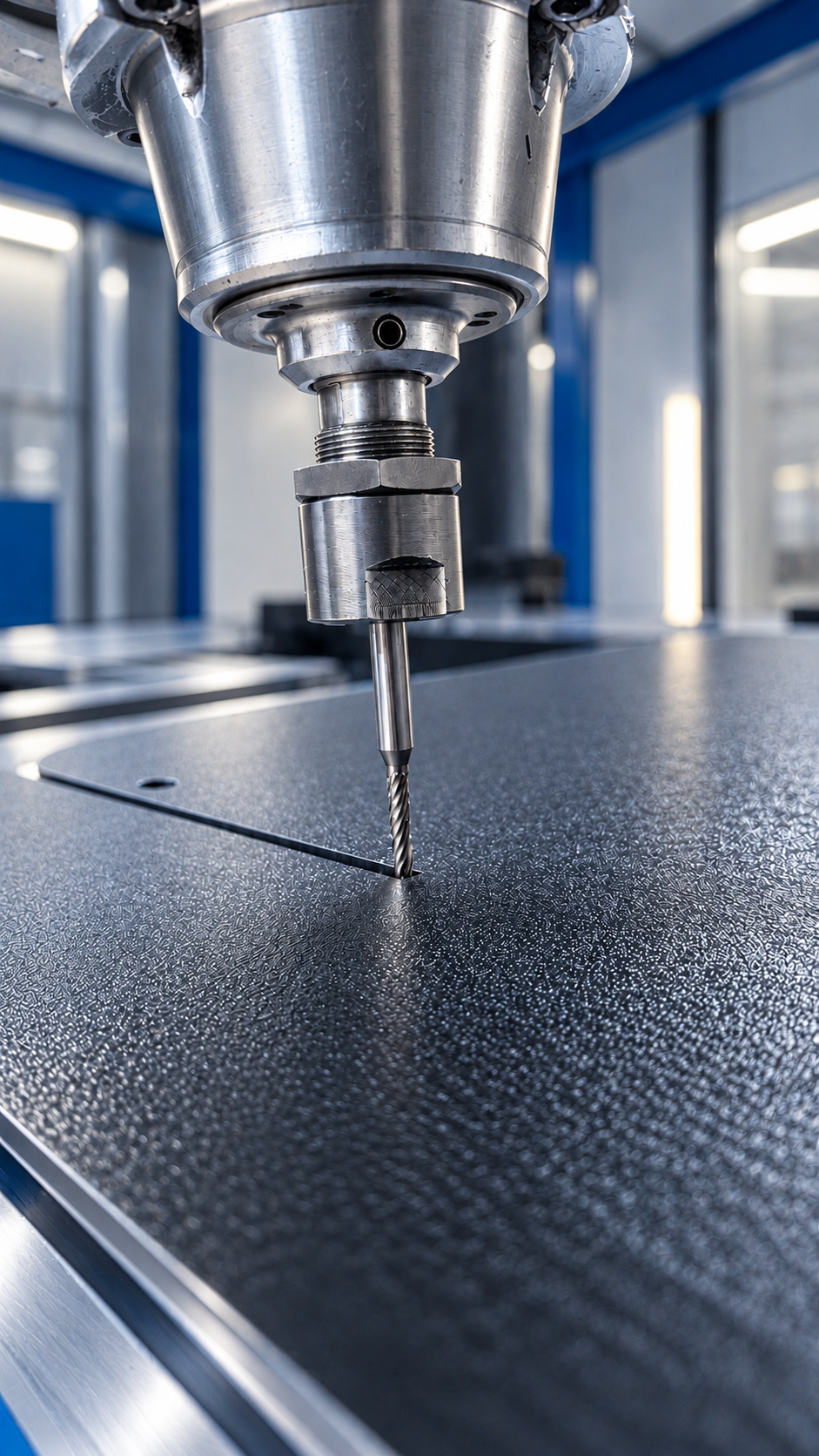

Milling
CNC tools trim contours and create openings in the component.

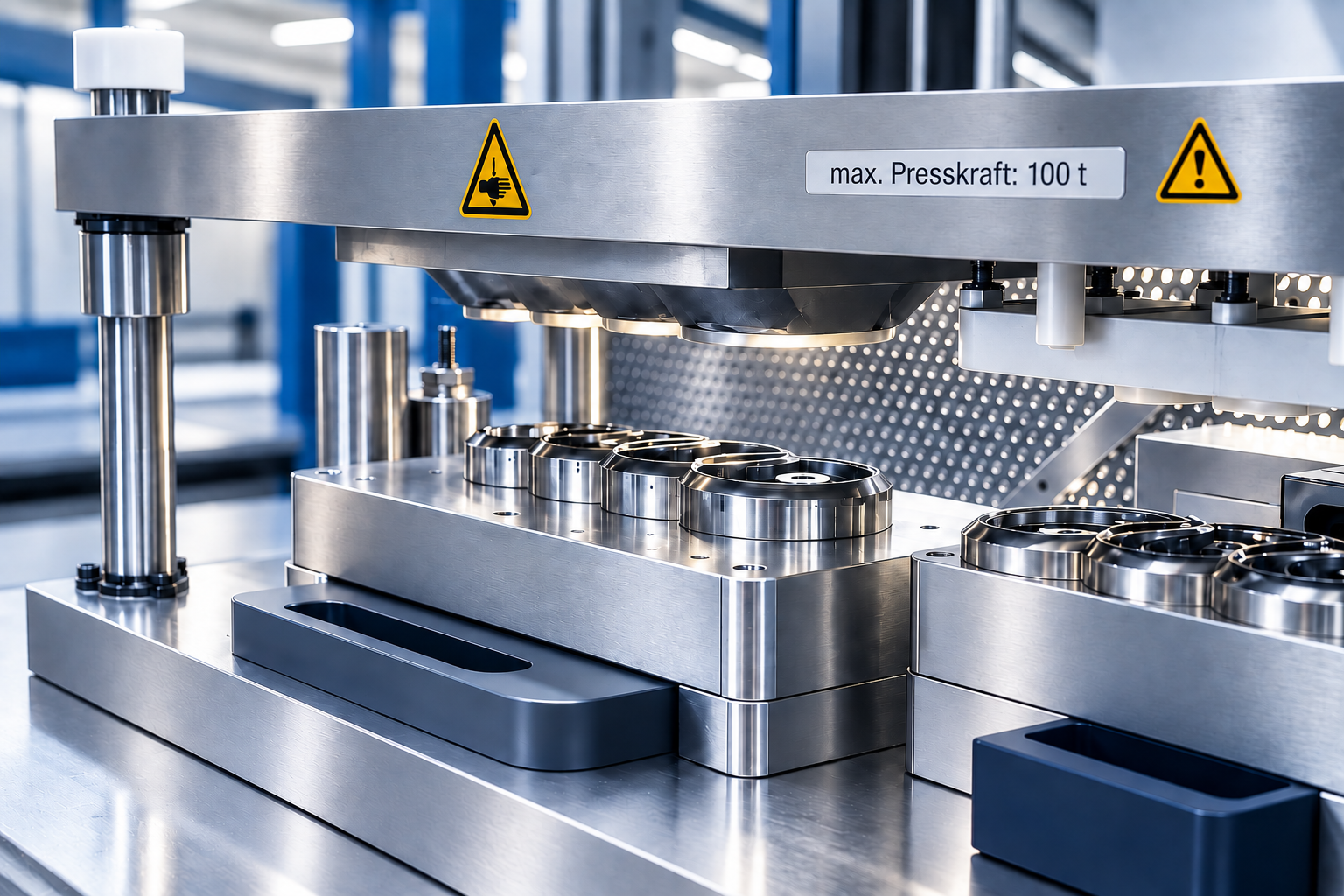

Die cutting
Cutting dies separate formed parts and trim excess edges along the specified outline.
UV curing
An additional step for suitable surface systems.

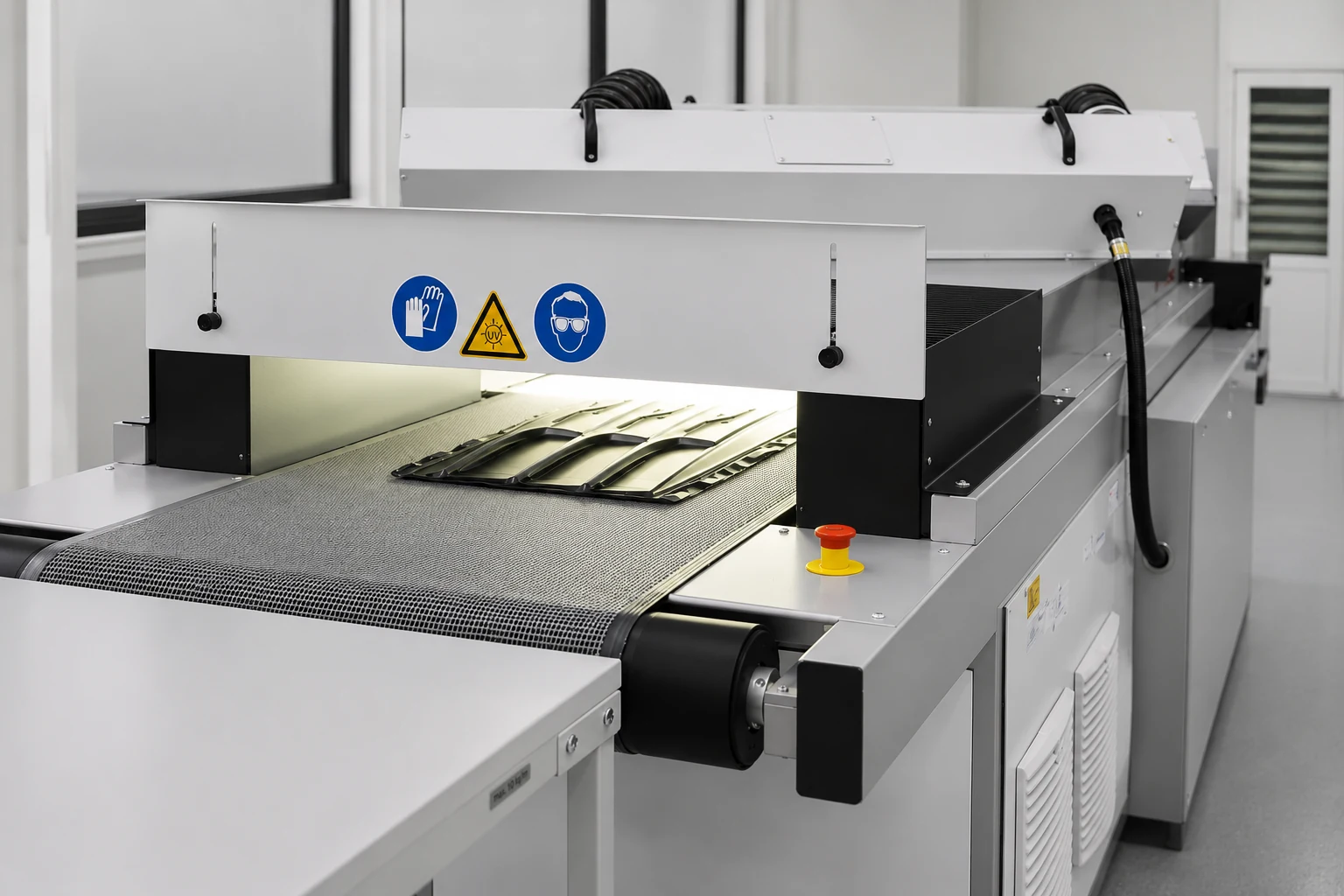

UV curing unit
UV light cures coatings designed for this process.
